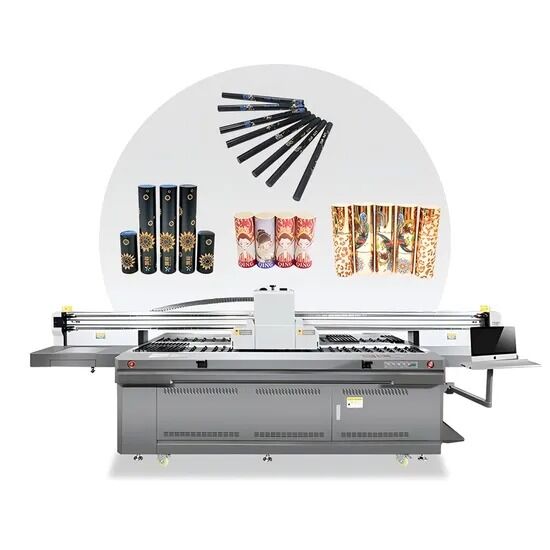

Seamless Design Cylinder UV Digital Bottle Inkjet Printer 2510
Product Overview
High-performance UV digital bottle printer designed for seamless cylindrical printing applications with cost-effective operation.
Key Features
-
High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
-
High Resolution: Multiple inkjet schemes for different printing materials with accurate colors, distinct layers, and uniform transitions
-
Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents ink curing blockages
Technical Specifications
| Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Effective Orifice |
1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers with ISO-certified quality control and production management. We support OEM and ODM services with over 10 years of UV printer manufacturing experience, exporting to France, Germany, Vietnam, India, and other countries. All products carry CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables high-quality graphics on various materials including acrylic boards and backlit films, and can serve as a primer for non-white substrates. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating requirements and prevents fading and blistering issues.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training and on-site testing and repair services when needed.
Q5: Regarding printer maintenance
We recommend daily ink purging when starting the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
We are a manufacturing factory, enabling us to offer competitive pricing and high-quality service directly.
